KCT8546SE
5GHz 802.11ax RF Front-End Module
Introduction

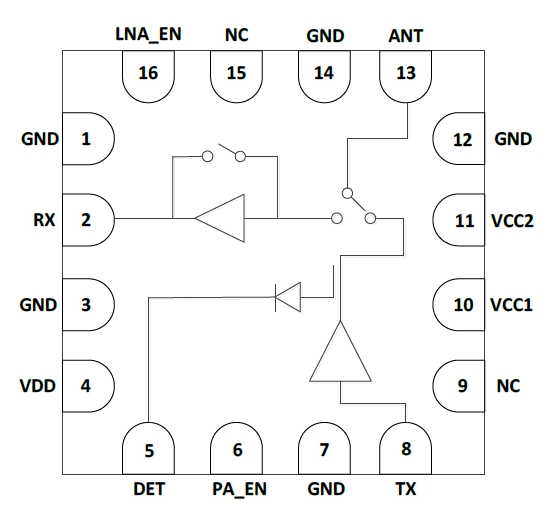

KCT8546SE is a highly integrated RF front-end integrated circuit incorporates key RF functionality needed for IEEE 802.11a/n/ac/ax WLAN systems operating in the 5.15-5.85GHz range. KCT8546SE integrates a high-efficiency, high-linearity power amplifier (PA), a low noise amplifier (LNA) with bypass, the associated matching network, and harmonic filters all in one device.
KCT8546SE has simple and low-voltage control logic, and requires minimal external components. A power detector is also integrated for accurate monitoring of output power from the PA.

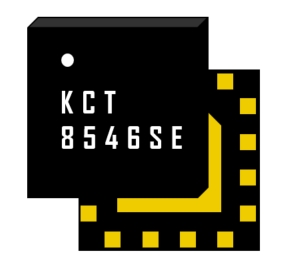

KCT8546SE is assembled in a compact, low-profile 2.5x2.5x0.55mm 16-lead QFN package. KCT8546SE is the ideal RF front-end solution for implementing 5GHz high-power WLAN systems supporting multiple standards including 802.11a/n/ac/ax.
Specifications
Integrated 802.11ax 5GHz PA, LNA with bypass and T/R switch
Fully-matched input and output
Integrated power detector
Transmit gain: 31.5dB at 5V
Receive gain: 14.5dB at 5V
Noise figure: 2.1dB at 5V
Output power:
+17.5dBm @ -43dB DEVM, HE160/MCS11, 5V
+19.5dBm @ -40dB DEVM, HE160/MCS11, 5V
+22.5dBm @ -35dB DEVM, VHT80/MCS9, 5V
+23.5dBm @ -30dB DEVM, VHT20/MCS7, 5V
ESD protection circuitry on all PINs
Minimal external components required
Small package: QFN-16L 2.5mm x 2.5mm x 0.55mm (MSL3, 260℃per JEDEC J-STD-020)
RoHS and REACH Compliant
